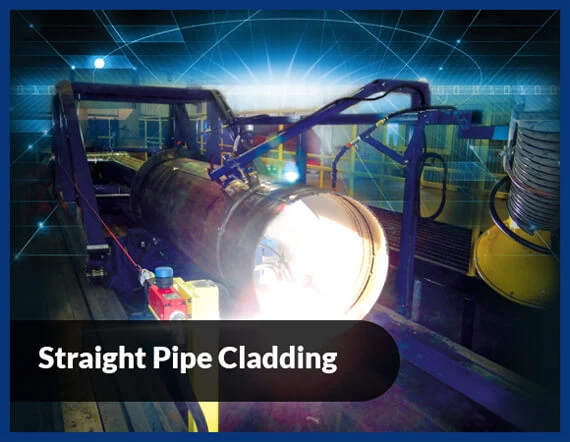

Straight Pipe Cladding

BP Automation provides state-of-the-art cladding systems ideal for a number of industrial applications. Our in-house team of experienced engineers, technicians, and machinists design and manufacture a comprehensive range of cladding systems including elbow pipe cladding and straight pipe cladding. Our job is to convert your manufacturing problems into high performance automated systems with a potential to achieve an unprecedented level of precision and efficiency. Feel free to discuss your manufacturing deficiencies with us and we will be happy to eliminate them.

4-Head Internal Hard Surfacing

Over 90% Arc On Time
Custom Pipe Lengths Up To 40 Ft
4-Head Simulataneous Welding

Automatic Torch Height
Quick Setup and Low Maintenance
Dual and Single Mode Operation

Features

Patented Single Mode or Dual Mode Function
In Dual Mode 2 different pipes can be welded simultaneously at each end
Fully automated HMI control eliminating operator error
Data Logging and Quality Control Recipe Management
Automatic Torch Height Control using ACC
10- Axis full servo motor control

In Single mode, one 40 ft. pipe can be cladded with 4 torches
Fast Setup self-aligning carriage rollers
Fully programmable, torch height, wire speed, current, voltage, travel speed
Automatic current control regardless of surface irregularities
Continuous Spiral Bead
Safety Codes (UL, CSA, ISO 12100, ISO 13849 etc.)

Machine Specifications

24 to 48 inch + diameter, up to 40 feet long
Reducers from 6 inch to 48 inch plus
Up to 1000 in/min wire feed speed
Maximum pipe weight: 18,000 lbs.

8 to 22 inch diameter, up to 20 feet long (optional)
4 torches weld either simultaneously or independently for recipes
Wire Sizes up to 7/64”
