Sub-Arc Welding Systems Edmonton, Alberta

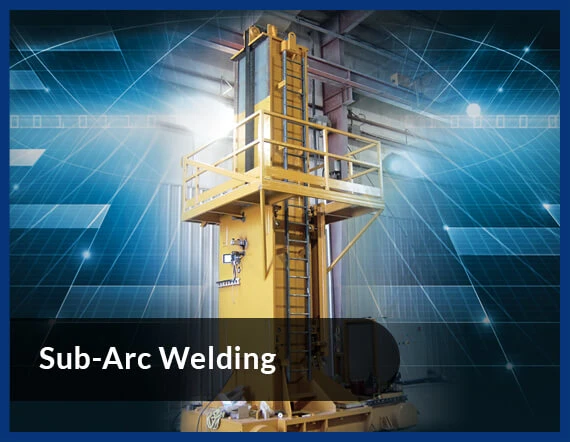

Sub-Arc Welding

Submerged arc welding is old but highly productive and effective method for heavy duty welding. Our robotized sub-arc welding solutions offer high deposition rate, metallurgical weld quality, and welding speed while improving the overall productivity of the welding of heavy workpieces. Robotized sub-arc welding (SAW) eliminates the time-consuming realignments and offers excellent repeatability. Systems are designed with operator safety, process repeatability, and long-term reliability in mind.

Sub-Arc Welding System FAQs

What is a sub-arc welding system?

A sub-arc welding system, also called submerged arc welding or SAW, uses a continuously fed electrode and granular flux to produce high-deposition welds. Automated SAW equipment controls travel, weld parameters, flux handling, and workpiece positioning for repeatable heavy-duty welding.

When is submerged arc welding a good fit?

Submerged arc welding is often used for thick plate, pipe, pressure vessels, structural fabrication, and other heavy weldments where high deposition rate, deep penetration, and consistent weld quality are important.

Can BP Automation build custom automated SAW equipment?

Yes. BP Automation can design sub-arc welding systems around the workpiece size, joint geometry, weld procedure, manipulator or carriage motion, fixturing, positioners, flux recovery, controls, safety, and production requirements.

Can sub-arc welding systems include PLC and HMI controls?

Yes. BP Automation can integrate PLC and HMI controls, motion systems, welding power sources, sensors, recipes, process monitoring, safety systems, and operator interfaces into custom SAW machines.

Featured Machines

What Is Welding Automation?

Welding automation is the use of mechanized or robotic systems to perform welding operations with controlled, repeatable motion — replacing or augmenting manual welding to deliver consistent weld quality at higher speeds and lower per-part costs. In industrial manufacturing, welding automation spans a wide range of processes: submerged arc welding (SAW), MIG/GMAW, TIG/GTAW, plasma welding, and flux-cored arc welding (FCAW), each suited to different materials, joint configurations, and deposition requirements.

BP Automation engineers custom welding automation systems in Edmonton, Alberta, for manufacturers across Western Canada who need weld quality, throughput, and consistency that manual welding cannot reliably deliver at scale. Submerged arc welding automation is one of our core capabilities — high-deposition, high-quality, and highly repeatable for the applications that demand it.

Why Automate Submerged Arc Welding?

Submerged arc welding produces some of the highest-quality, highest-deposition welds in industrial manufacturing — but manual SAW is slow to set up, difficult to control on large workpieces, and limited by the physical reach and endurance of the operator. Automated SAW systems remove those constraints: the machine travels the joint at a controlled speed, maintains arc length and wire feed, and delivers consistent parameters across the full length of every weld, every time.

For high-volume applications like pressure vessel fabrication, pipe cladding, structural plate welding, and heavy component manufacturing, welding automation via SAW delivers deposition rates and quality consistency that no manual welding process can match at scale.

Welding Automation Applications We Build For

Pressure Vessel Fabrication

Longitudinal and circumferential seam welding with controlled heat input and consistent penetration for ASME and CWB-certified production.

Pipe Cladding & Overlay

Internal and external pipe cladding using automated SAW or open arc for corrosion-resistant and wear-resistant overlay applications.

Structural Steel & Plate

High-deposition welding of thick plate, I-beams, box sections, and structural weldments where manual welding is too slow or inconsistent.

Heavy Equipment Components

Mining, forestry, and construction equipment parts welded automatically for strength, toughness, and consistent production throughput.

Panel & Flat Weldments

Automated panel welding for flat plates, floor sections, and bulkhead assemblies where long straight-seam welds need speed and consistency.

Multi-Wire SAW Systems

Twin-wire and tandem SAW configurations for maximum deposition rates on high-volume production of thick-section weldments.

What a Custom SAW Automation System Includes

BP Automation’s submerged arc welding systems are fully engineered solutions — not just a welding head on a track. A typical custom SAW automation system from BP Automation includes:

Column-and-boom or gantry structure sized to your workpiece
Motorized cross-travel and vertical axes with precision speed control
Wire feed system with tachometer feedback and wire straightener
Flux hopper, delivery system, and flux recovery where applicable
PLC-based control with HMI for parameter setting, monitoring, and data logging
Seam tracking or joint sensing for consistent arc positioning
Integration with your positioner, rotator, or part handling system

Welding Automation That Fits Your Operation

Every welding automation project starts with your production problem — the joint, the material, the volume, the quality standard, and the floor space. We engineer the system around those requirements. Whether you need a simple mechanized welding carriage or a full multi-axis SAW cell with integrated part handling, BP Automation designs, builds, installs, and commissions the system so it’s running correctly from day one.

Sub-Arc Welding Automation in Edmonton, Alberta

BP Automation designs and builds automated submerged arc welding (SAW) systems for heavy fabrication applications across Edmonton and Alberta. Submerged arc welding delivers high deposition rates and deep penetration welds ideal for thick plate, pressure vessels, structural steel, and pipe fabrication. Our automated SAW systems achieve consistent weld quality at production speeds that manual and semi-automatic processes cannot match.

Our Edmonton engineering team designs complete SAW automation solutions including travel carriages, column-and-boom manipulators, positioners, flux recovery systems, and machine controls. We serve heavy equipment manufacturers, pressure vessel fabricators, and shipbuilding and structural fabrication shops throughout Western Canada.
